Titanium Rolling Chassis

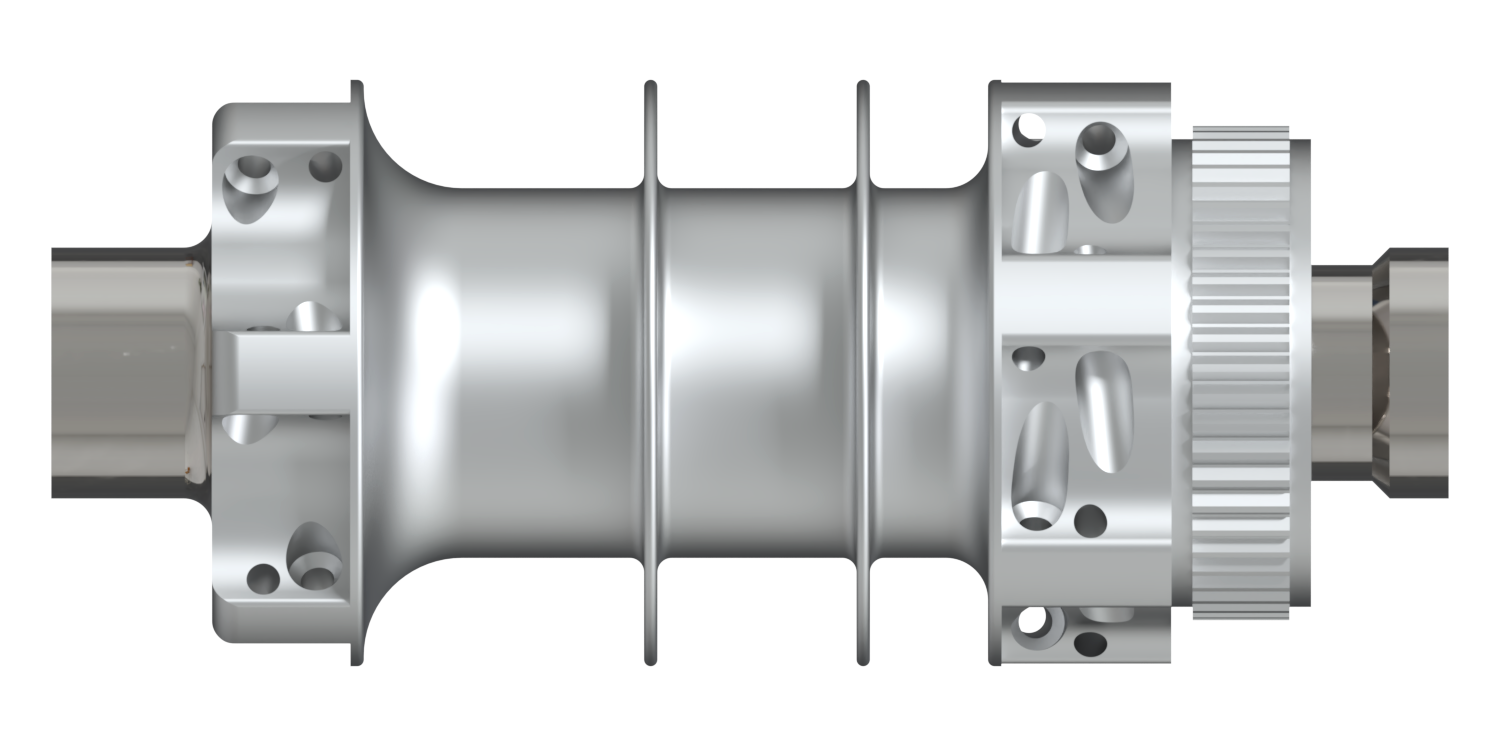

The hub is the critical heart of your bicycle’s rolling system, connecting bike, rider, wheels, and terrain. Lavelle hubs feature titanium axles for unparalleled strength and alignment stability.
10x Stronger: Titanium axles outperform aluminum under all conditions.
65% Stiffer: Superior in stiffness than aluminum, for maximum power transfer. This precision ensures the perfect foundation for your ride.
Built around precision
At Lavelle, high performance begins with four bearings, perfectly aligned across all axes.Titanium parts maintain precision under all loads.
Aerospace-Grade materials are engineered for uncompromising durability. Exacting tolerances means the every hub is crafted to perfection.
Perfect Preload
At Lavelle, high performance begins with four bearings, perfectly aligned across all axes.Titanium parts maintain precision under all loads.
Aerospace-Grade materials are engineered for uncompromising durability. Exacting tolerances means the every hub is crafted to perfection.
Cooling Fins
At Lavelle, high performance begins with four bearings, perfectly aligned across all axes.Titanium parts maintain precision under all loads.
Aerospace-Grade materials are engineered for uncompromising durability. Exacting tolerances means the every hub is crafted to perfection.
One Technology Two Options
Clutch
If you prioritize silence, minimal lag, and ultra-smooth power, go for the Clutch.
Ratchet
If you prefer a crisp, mechanical response and lighter weight, the Ratchet with 48 POE is your pick.
Precision engineering at its core, offered in two distinct engagement systems for tailored performance.
All Road Specifications
Road / Gravel Use
Frame Geometry
Front 100 mm
Axle 12 mm
Rear 142 mm
Axle 12 mm
Transmission
Ratchet
7,5º Engagement
Clutch / Silent coast
0.2º Engagement
Brake
Drive shell
Bearings
Centerlock
SRAM XD/XDR
Shimano 9 Splines
Spokes
24 Holes Alpina Hyperlite Aero / ABS Self Lock Nipple
Rear 1X61903 3X 61803
ø17 mm Titanium axle
Front 2X 61902
ø15 mm Titanium axle
Rim Geometry
Rear 65 mm
Inner Width 25 mm
Outter width 34 mm
Hole count 24
ERD 540 mm
Front 50 mm
Inner Width 25 mm
Outter width 34 mm
Hole count 24
ERD 540 mm
Weight
Rear 694g
Rear 804g
Total 1370 g - Ratchet
Total 1550g - Clutch
Front 656g
