The BMX wheel features our precision-engineered hubs. Discover the full hub details on our hubs page

Hub
BMX Hubset BMX Hubset BMX Hubset BMX Hubset BMX Hubset
BMX Hubset
€830.00

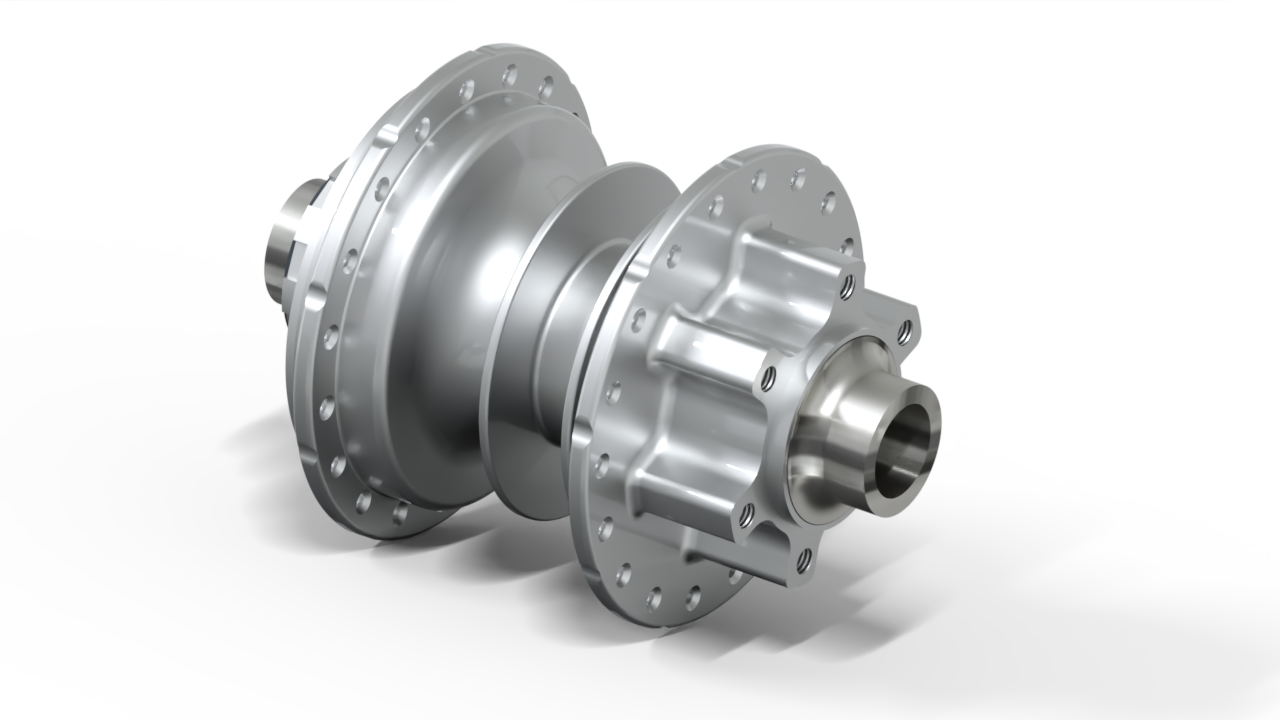

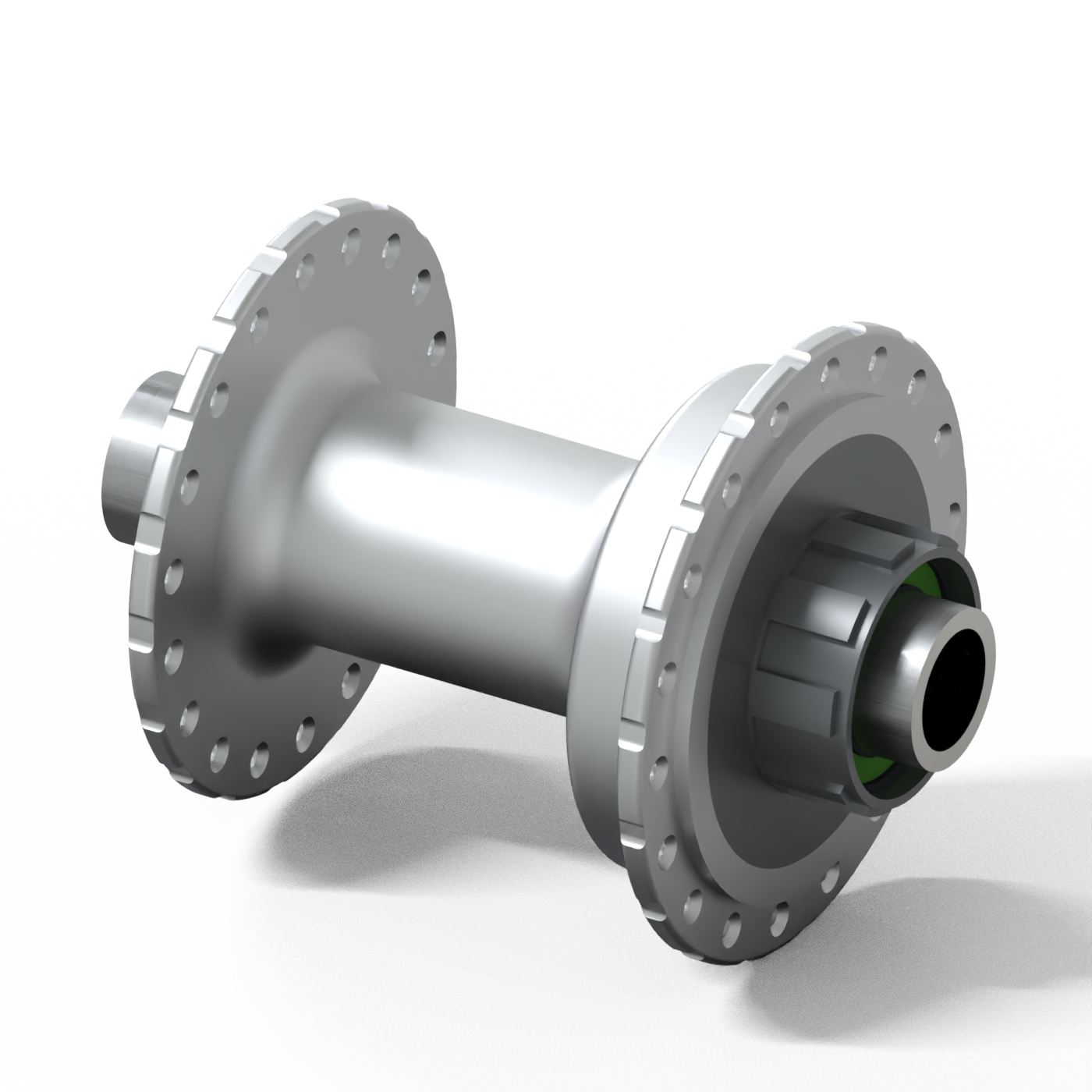

Hubset for MTB Front 100 mm 20 mm Axle Rear 110 mm 15 mm Axle

7075 T6 Aluminum reinforced housing

ISO 6 Bolt Brake interface / 0.2º Engagement Angle

Front ø20 mm Titanium Grade 5 Axle / 61905 Bearings

Rear ø15 mm Titanium Grade 5 Axle / 61903 Bearings

Single Speed body

As standard 36 holes.

BMX Specifications

BMX Use

Frame Geometry

Front 110 mm

Axle 20 mm

Rear 110 mm

Axle 15 mm

Transmission

0.2º Engagement

Silent coast

Brake

ISO 6 Bolt

Drive shell

Shimano 9 Splines

Spokes

Bearings

36 Holes J Bend

Front 59 mm Flanges 21mm Offset

Rear 59 mm Flanges 20/28mm Offset

Front 2X 61805

ø20 mm 100 mm spacing

180 mm Spokes all positions

Rear 4X61903

ø12mm 100 mm spacing

Fireroad Review JYC

“The most fascinating aspect of these Lavelle wheels lies in their revolutionary rear hub mechanics. Silent and without ratchets, it provides a sense of zero friction, and the freehub engages instantly. Throughout numerous changes in direction, braking, and accelerations on a recent Gravel race, I gradually noticed a quicker response compared to my riding companions. The engagement feels instantaneous.”
